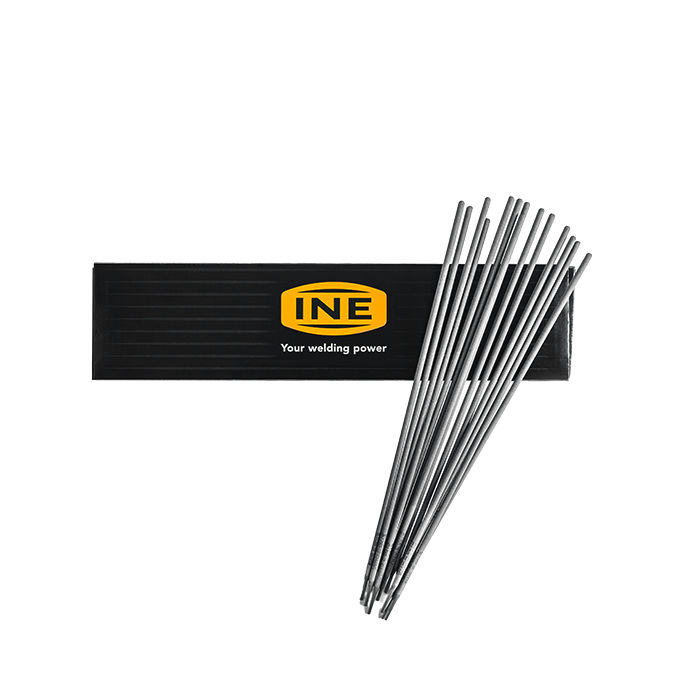

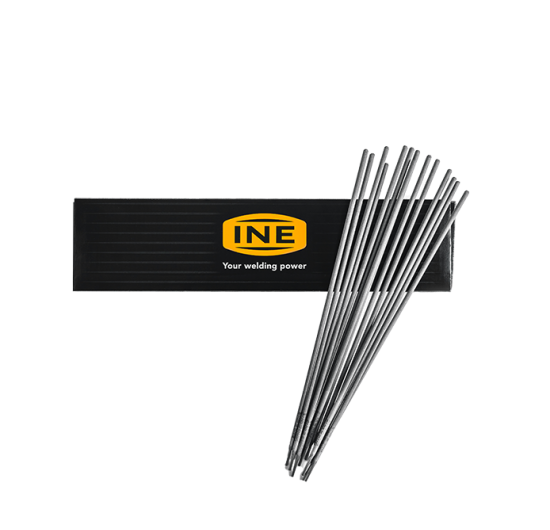

INE 48 A

Rutile-coated stick electrode for welding carbon and C - Mn steels

Special rutile-coated stick electrode to be used for the welding of carbon and C - Mn steels having medium mechanical properties.
Classifications
  • AWS A 5.1: E6013
  • EN ISO 2560-A: E 42 0 R 1 2
Approvals
  • Marchio CE
  • DB
  • TÜV
REQUEST LISTING
DOWNLOAD DOCUMENTS

Rutile-coated stick electrode to be used for the welding of carbon and C - Mn steels having medium mechanical properties. Featuring quick arc start which is further improved thanks to the presence of the iron oxide. Very good-looking weld bead, easily removable slag. Suitable for steel framed buildings. Forgeable weld. Designed for welding in all positions.

C 0.06
Si 0.40
Mn 0.50
Yield strength 440 MPa
Tensile strength 540 MPa
Elongation 24 %
Impact test Kv (0°C) 50 J
Diameter (mm) Length Ampere
2.0 300 40-70
2.5 300 60-100
3.2 450 85-130
  • tutte tranne vertical down
