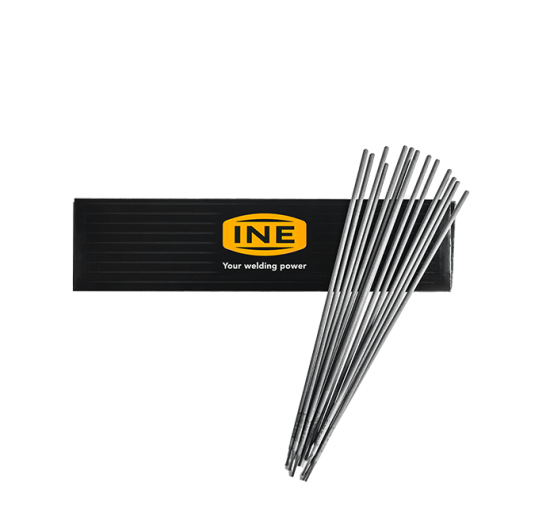

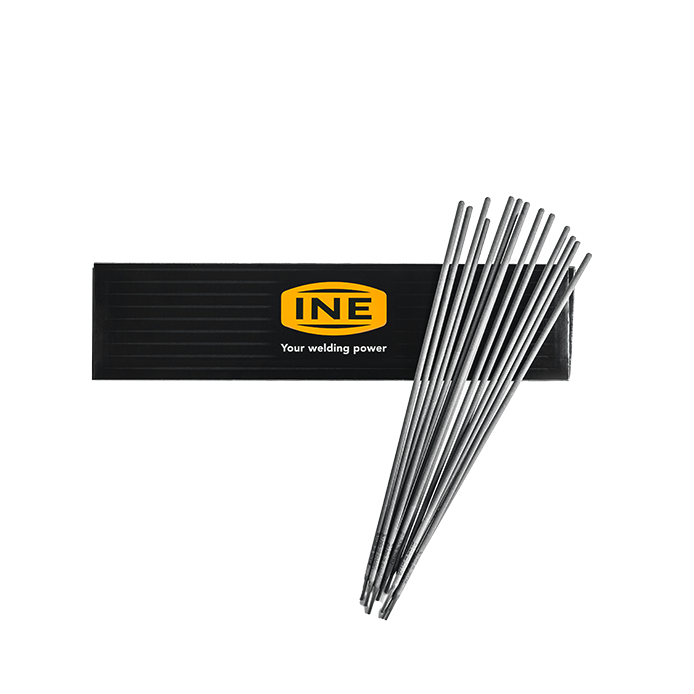

INE B2 L

Basic-coated "low carbon" stick electrode for welding 1.25% Cr - 0.5% Mo creep resistant steels

Basic coated low-hydrogen stick electrode for welding of 1.25% Cr - 0.5% Mo creep-resistant steels. The low carbon content improves resistance to cold cracking. X and J Factor controlled. A 5.5: E7018-B2L H4.
Classifications
  • AWS A 5.5: E7018-B2L H4
  • EN ISO 3580-A: E CrMo1L
REQUEST LISTING
DOWNLOAD DOCUMENTS

Basic coated low-hydrogen stick electrode for welding of 1.25% Cr - 0.5% Mo creep-resistant steels. Compared to INE B2, the lower carbon content of INE B2L results in welds with lower hardness with improved resistance to cold cracking. Recommended in the oil and gas industry, chemical industry, ammonia synthesis processes and thermal power plants for heat exchangers, boilers, pipes and pressure vessels with operating temperatures up to about 550°C. *(X and J Factor available “on request”).

C 0.03
Si 0.40
Mn 0.70
Cr 1.25
Mo 0.50
Yield strength 480 (T) MPa 480 (T) MPa 480 (T) MPa
Tensile strength 520-650 (T) MPa 520-650 (T) MPa 520-650 (T) MPa
Elongation 25 (T) % 25 (T) % 25 (T) %
Impact test Kv (R.T.) 150 J (T)
Impact test Kv (-20°C) 90J (T)
Impact test Kv (-40°C) 47J (T)
Diameter (mm) Length Ampere
2.5 350 60-110
3.2 350 90-140
4.0 350 130-190
5.0 450 180-230
  • tutte tranne vertical down
