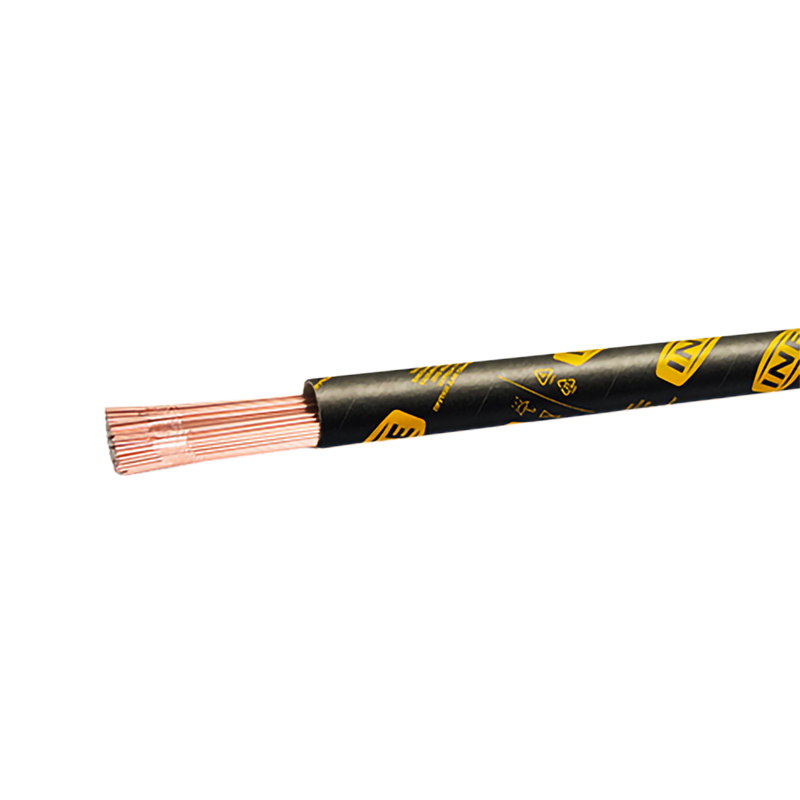

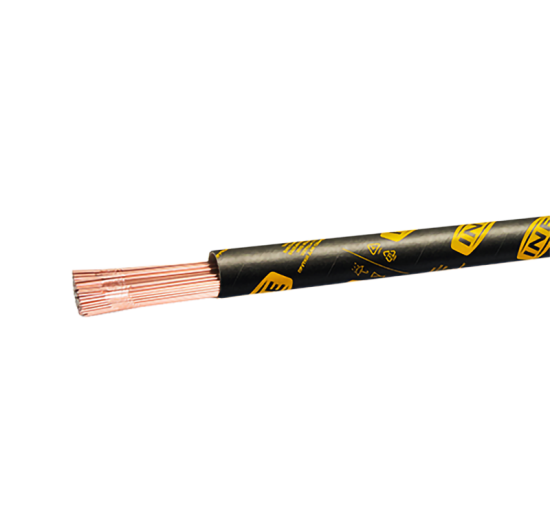

INETIG 120

TIG Rods for welding high strength steels.

Copper-coated low-alloy TIG rod with Ni-Cr-Mo for the welding of steels with high elastic limit with yield strength over 890 MPa and a tensile strength exceeding 940 MPa. Also available in spools for automatic TIG welding
Classifications
  • AWS A 5.28: ER120S-G
  • EN ISO 16834-A: W Mn4Ni2CrMo
REQUEST LISTING
DOWNLOAD DOCUMENTS

Copper-coated low alloy tig rod with Ni-Cr-Mo for welding high strength steels with minimum yield strength of 890 MPa and minimum tensile strength of 940 MPa. Excellent mechanical properties of weld metal and good toughness characteristics at low temperature. It could find application in earth moving equipment, cranes and industrial trucks fabrication.

C 0.08
Si 0.80
Mn 1.90
Cr 0.40
Mo 0.50
Ni 2.15
I1
Yield strength 910 MPa
Tensile strength 960 MPa
Elongation 16 %
Impact test Kv (-30°C) 120 J
Impact test Kv (-40°C) 100 J
Impact test Kv (-50°C) 70 J
