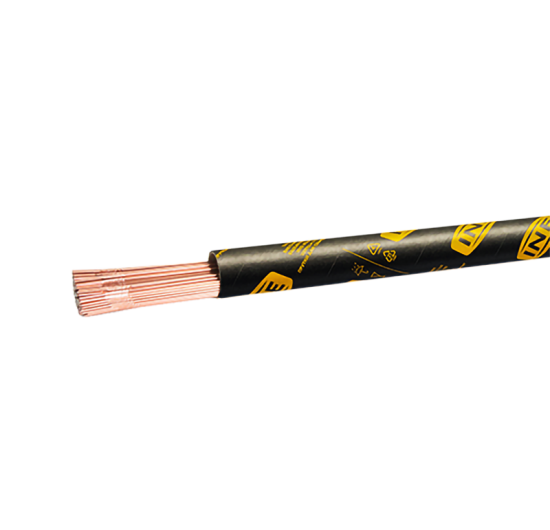

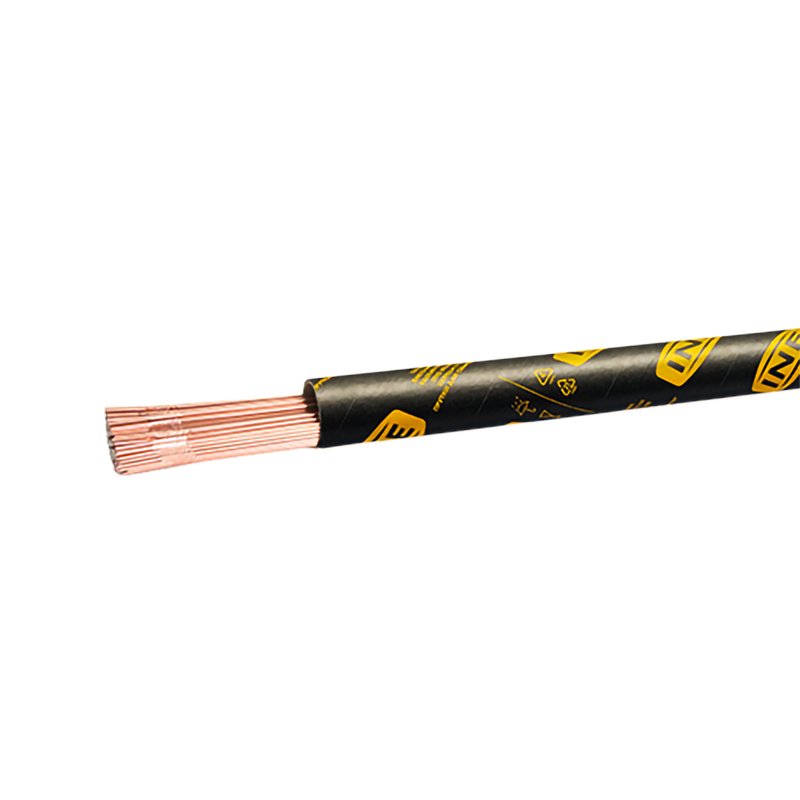

INETIG G2MO

TIG rods for welding 0.5% Mo. steels

AWS A 5.28: ER70S-A1 EN ISO 14341-A: G 46 2 M21 2Mo. TIG Rod 0.5% Mo used for welding low-alloyed steels and for creep resistance steels. Pipes and pressure vessels, max. temperature service up to 500 ° C. Gas 100% Ar.
Classifications
  • AWS A 5.28: ER70S-A1
  • EN ISO 636-A: W 46 2 2Mo
  • EN ISO 21952-A: W MoSi
Approvals
  • Marchio CE
  • DB
  • TÜV
REQUEST LISTING
DOWNLOAD DOCUMENTS

Low-alloy copper-coated TIG Rod with 0.5% Mo content designed for welding low-alloy steels with high tensile strength and creep-resistant steels. Suitable for pipelines and pressure vessels with operating temperatures of about 500°C. Good impact strength at low temperatures. To be used under the shield of Ar.

C 0.09
Si 0.60
Mn 1.20
Mo 0.50
I1 I1 I1
Yield strength 520 MPa 500 (T) MPa 500 (T) MPa
Tensile strength 630 MPa 610 (T) MPa 610 (T) MPa
Elongation 23 % 25 (T) % 25 (T) %
Impact test Kv (R.T.) 200 J 220 J (T)
Impact test Kv (-20°C) 80 J 100 J (T)
Diameter (mm) Volts
1.2 1000
1.6 1000
2.0 1000
2.4 1000
3.2 1000
4.0 1000
