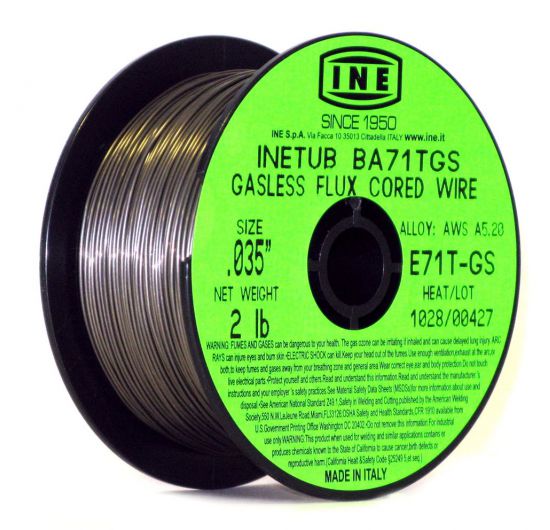

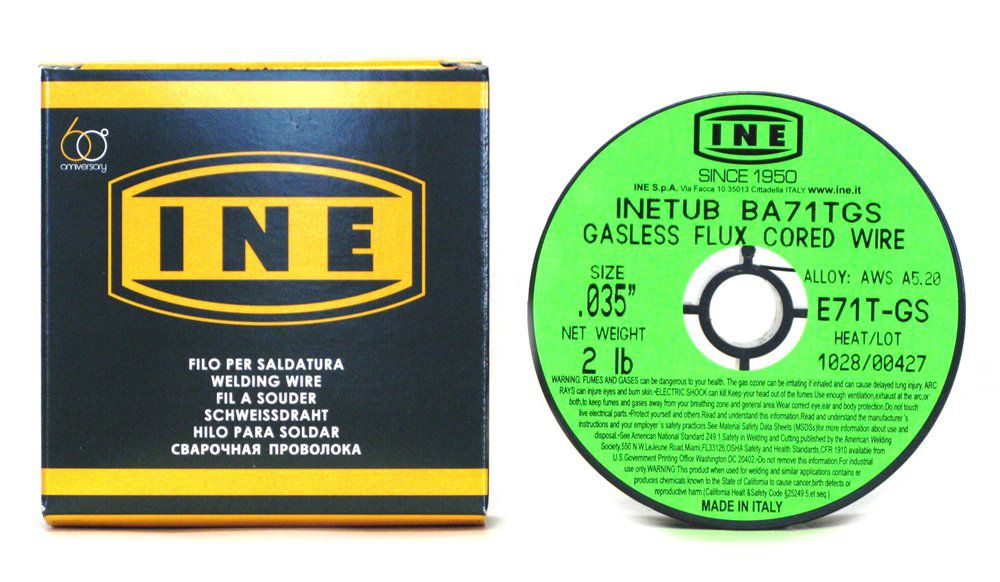

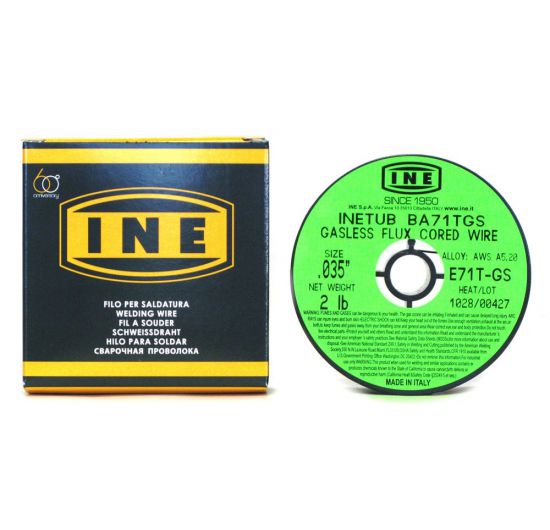

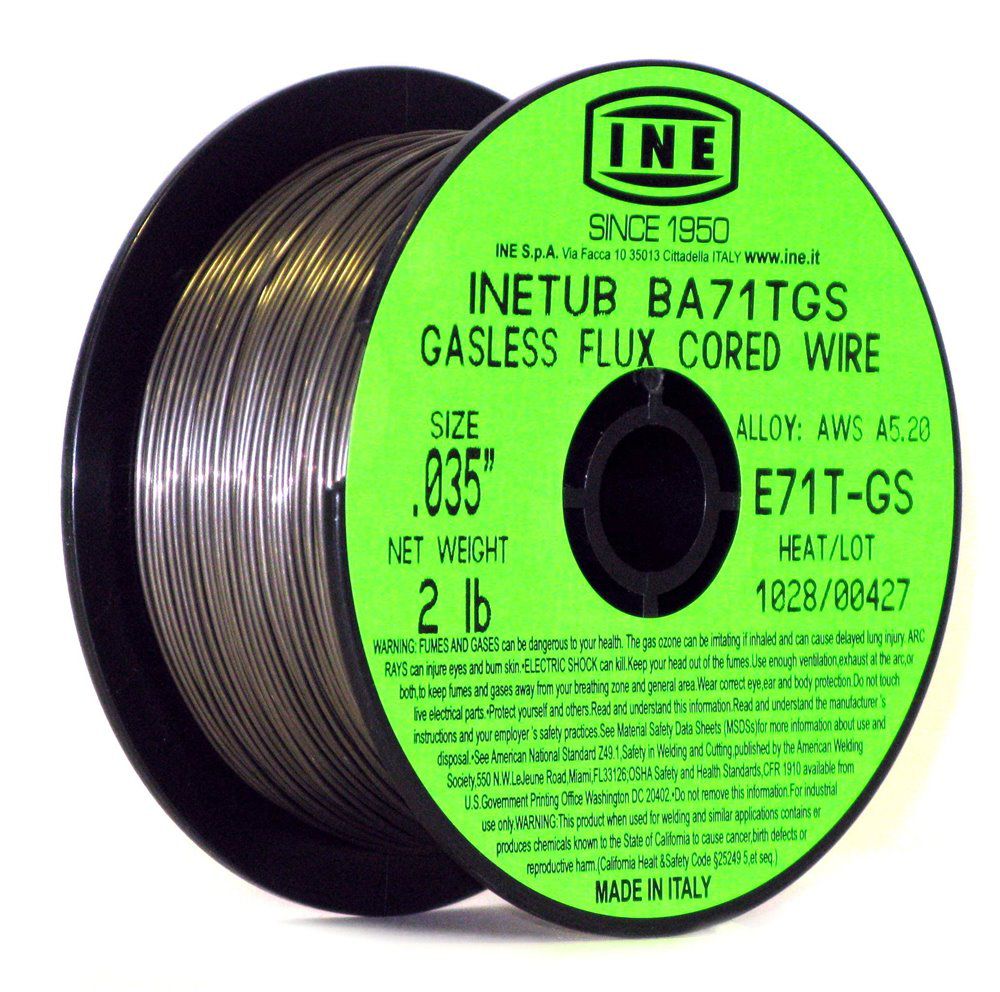

INETUB BA71TGS

Self-shielded flux-cored wire for welding carbon and C - Mn steels

Open-arc flux cored wire (self-shielded) designed for welding thin carbon and carbon-manganese steels in all positions. To be used on DC-(DC operation, electrode negative polarity). AWS A 5.20: E71T-GS
Classifications
  • AWS A 5.20: E71T-GS
  • AWS A 5.36: E71TGS-GS
  • EN ISO 17632-A: T 42 Z W NO 1 H15
REQUEST LISTING
DOWNLOAD DOCUMENTS

Open-arc flux cored wire (self-shielded) designed for welding thin carbon and carbon-manganese steels in all positions. Easily removable slag, versatility and manuality; suitable for welding zinc-coated plates as well. Applications include tanks, boilers, steel structural works (large thickness), earthworks and construction works. To be used on DC- (DC operation, electrode negative polarity).

C 0.18
Si 0.42
Mn 1.10
Al 0.90
Yield strength 470 MPa
Tensile strength 570 MPa
Diameter (mm) Volts Ampere
0.8 18-21 100-130
0.9 19-23 110-150
1.0 19-24 120-170
1.2 19-25 150-220
1.6
