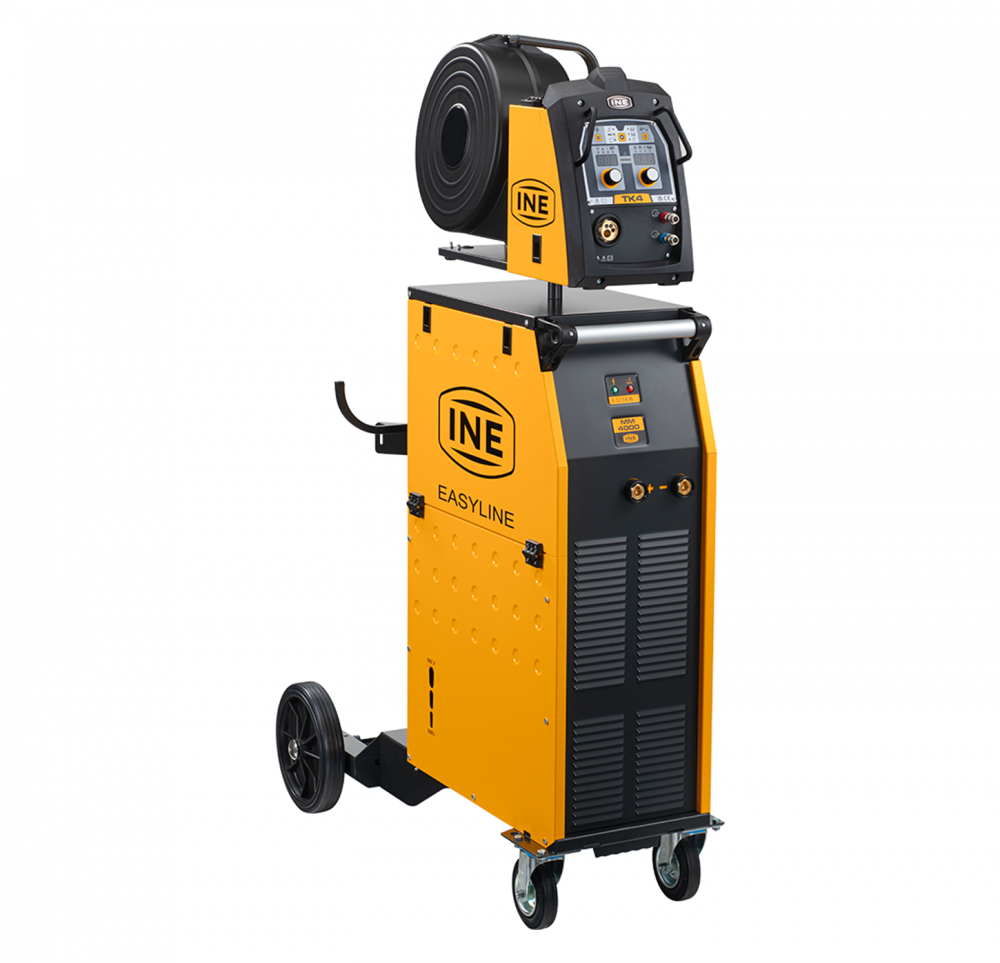

The new, fully digitally controlled inverter technology allows high duty cycles, increasing welding efficiency and quality. All Easyline models have been built to withstand even the most intensive and wear and tear, whether you work outdoors or in the workshop.

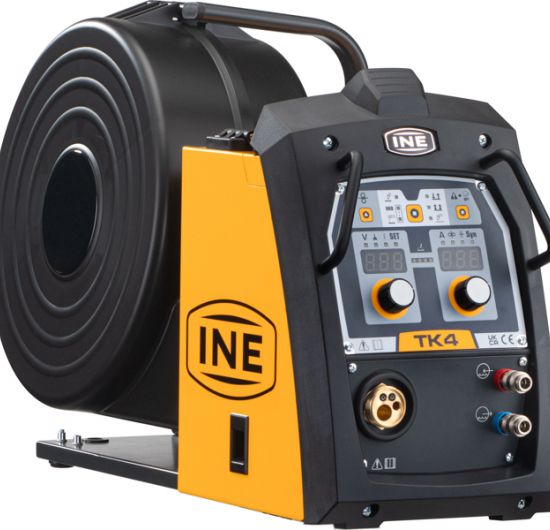

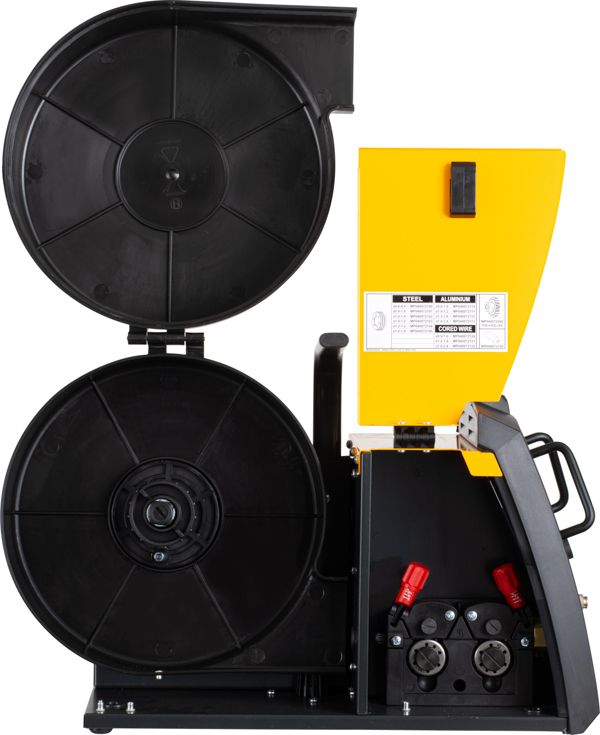

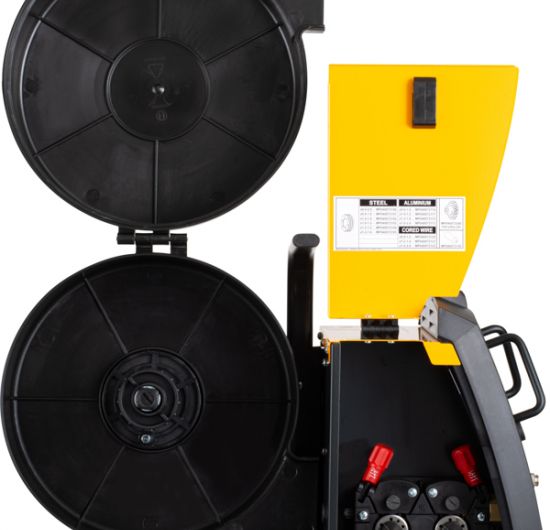

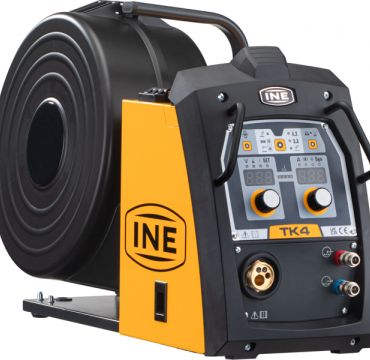

TK4
The wire feeder specifically designed for the Easyline line. Sturdy and light, it allows excellent transportability in all conditions of use. Optional wheel kit.
Synergic control allows the automatic selection of optimal welding parameters. This is designed to support less experienced operators who, using the many preset curves, will be able to work immediately and in any situation with all common materials, achieving precise, quality welding.
| Main voltage | 3x400V~ (±15%) 50-60Hz |
| Delayed line fuse | 16A - 400V~ |
| Current regulation | lineare |
| Max. absorbed power | 16.0 kW |
| current range | 6÷400A |
| No-load voltage | 40% 400A I 60% 360A I 100% 320A |
| Current range | 62V |
| Ø MMA electrodes | 1.6÷6.0 |
| Ø MIG/MAG WIRES | 0.6 - 0.8 - 1.0 - 1.2 |
| Protection class | IP23S |
| Weight | 60Kg |
| Dimension (WxDxH) | 550x940x1032mm 550x940x1480mm (MM+CWO+ TK4 configuration) |
